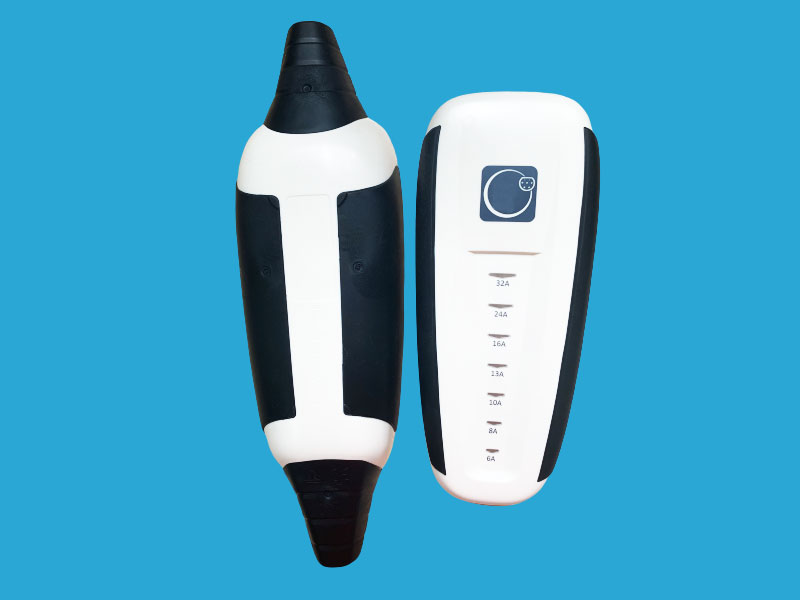

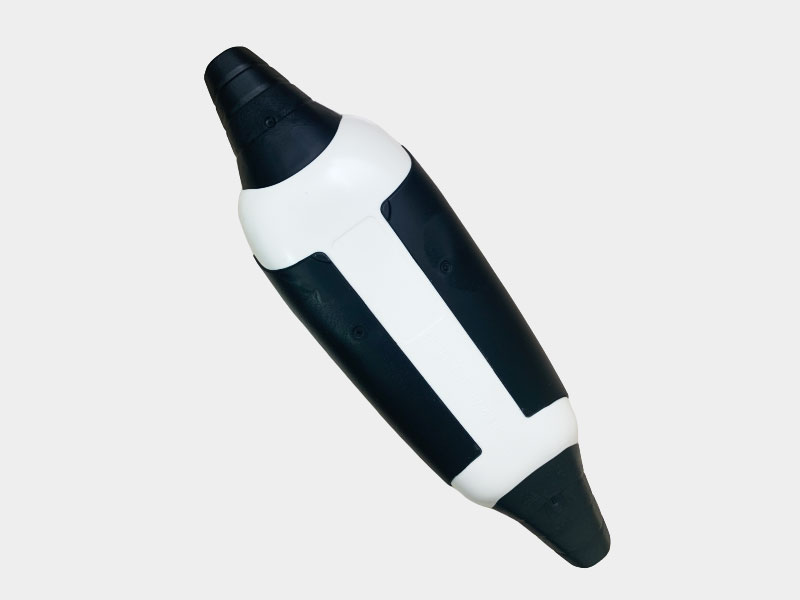

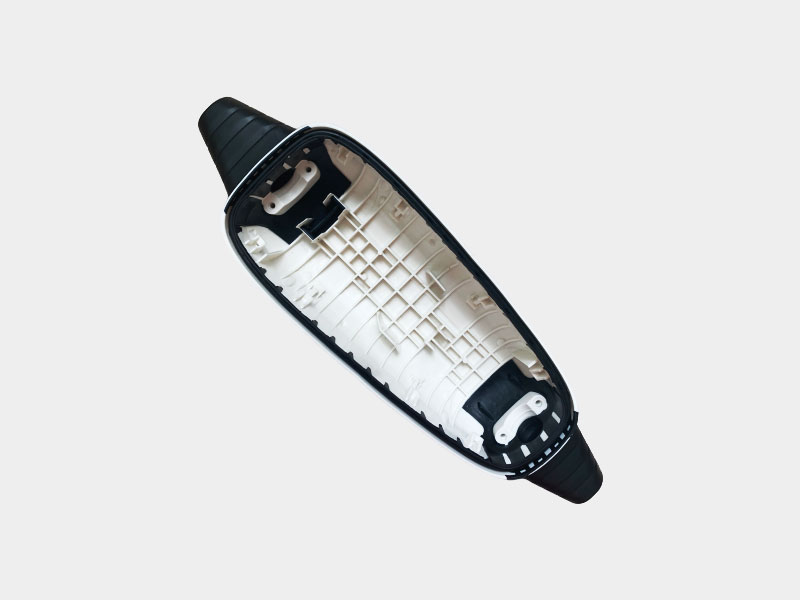

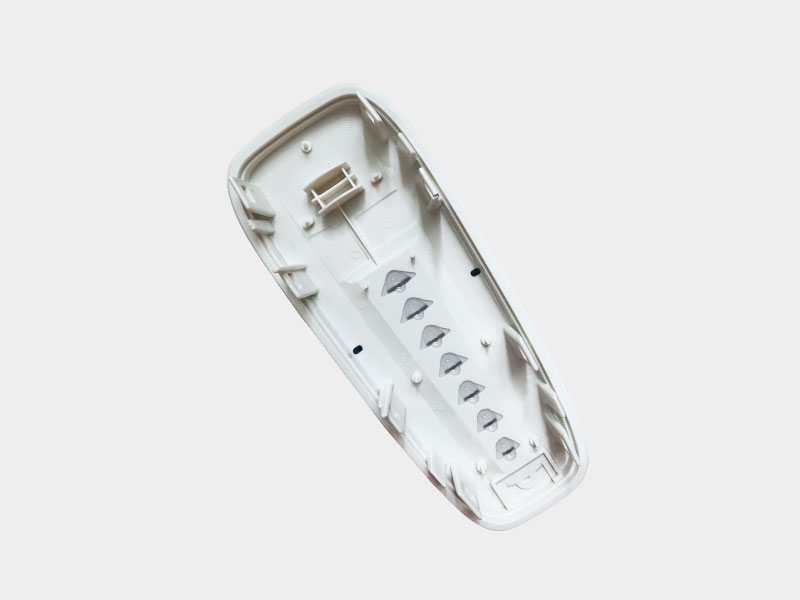

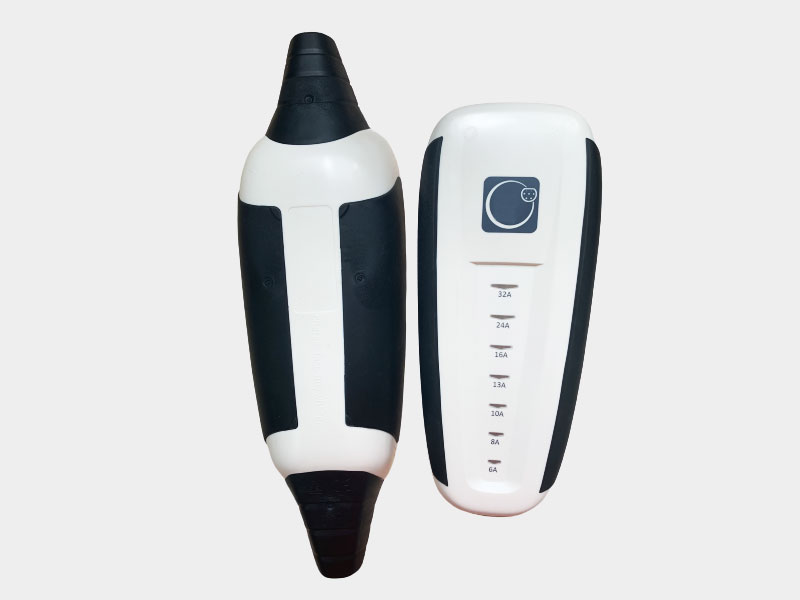

01. PRODUCT PICTURE

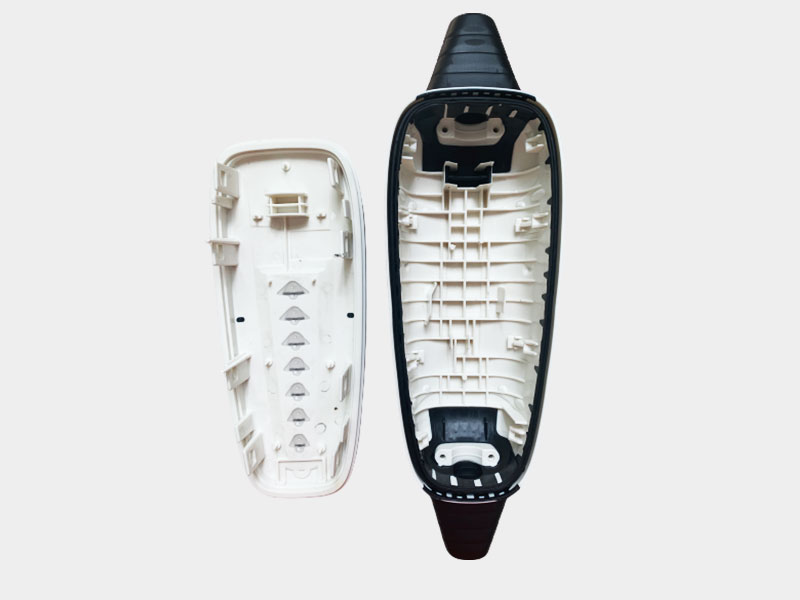

This is an overmolding part, top cover is made of TPE, ABS and PC, tampo print Logo on the surface, and bottom part is TPE and ABS, TPE soft material is good for sealing, housing parts used for charging of EVs anywhere.
01. PRODUCT PICTURE
This is an overmolding part, top cover is made of TPE, ABS and PC, tampo print Logo on the surface, and bottom part is TPE and ABS, TPE soft material is good for sealing, housing parts used for charging of EVs anywhere.

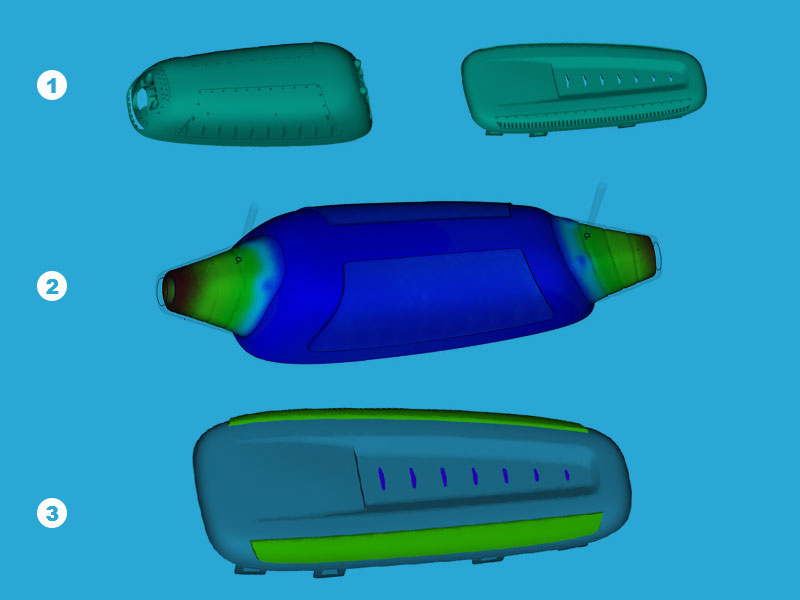

02. MOLD FLOW ANALYSIS
Professional mold flow analysis, from the actual situation of the part, Validate potential problem after the part and mold design; Check the fill balance pattern, weld line, air traps, and predict the needed clamp force and injection pressure, warpage, and the runner system is simulated as the mold design.There are material data, part details and tool description, process setup, wall thickness of part, fill time, pressure at the V/P switchover, injection pressure, clamp force, weld lines, air traps, time to freeze, volumetric shrinkage at ejection and deflection etc., According to these parameters we can better improve and targeted modification, in order to save cost, save time, manufacturing a good part high efficiently.

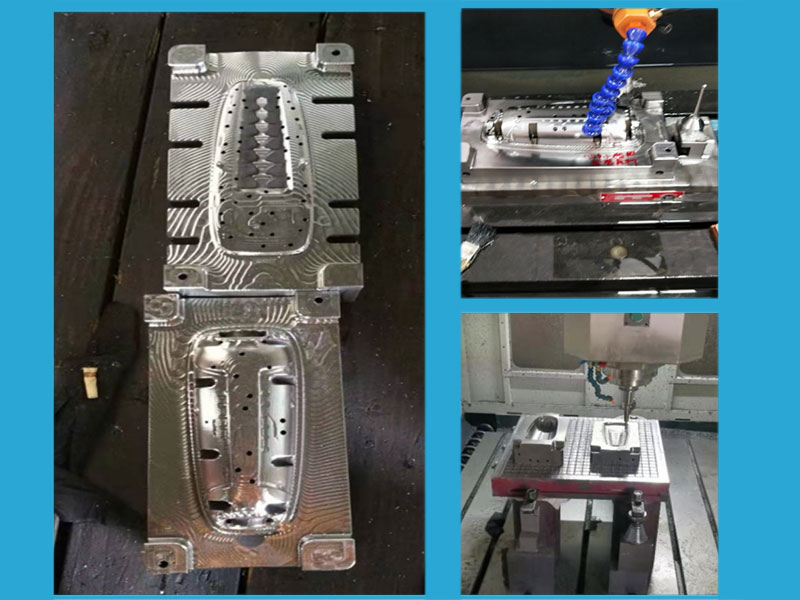

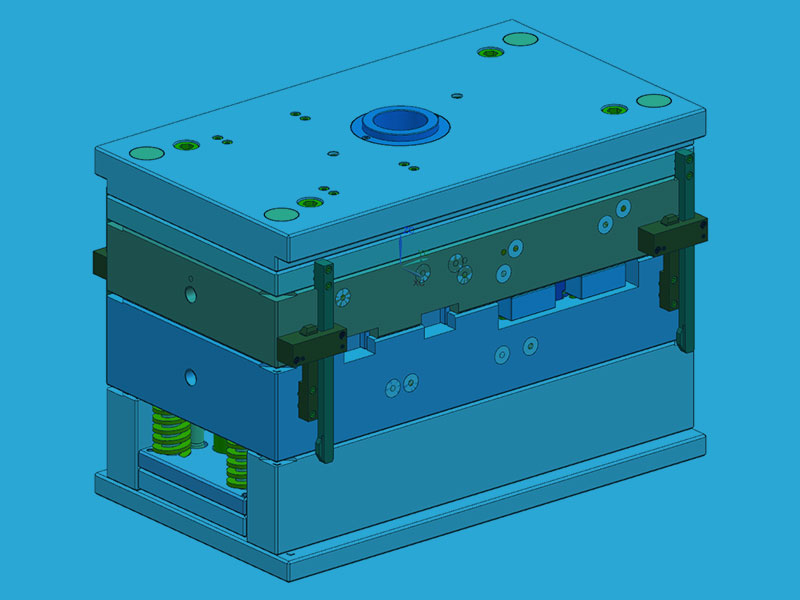

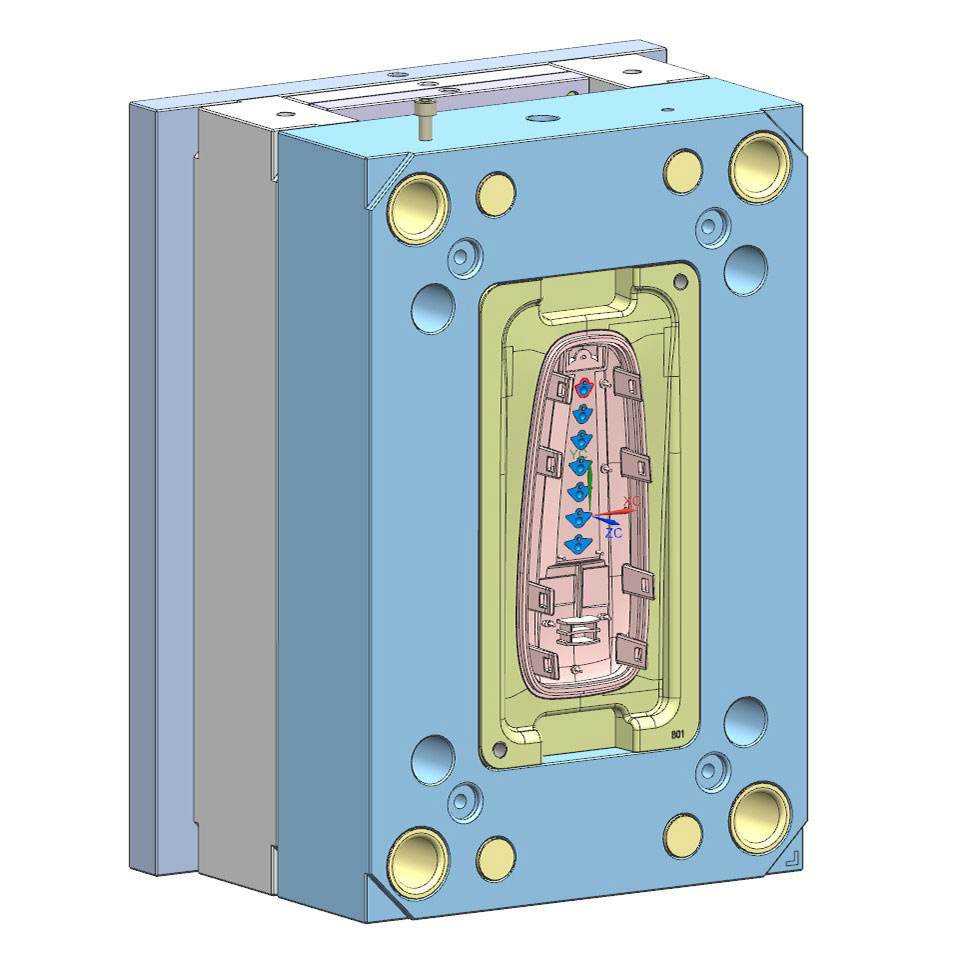

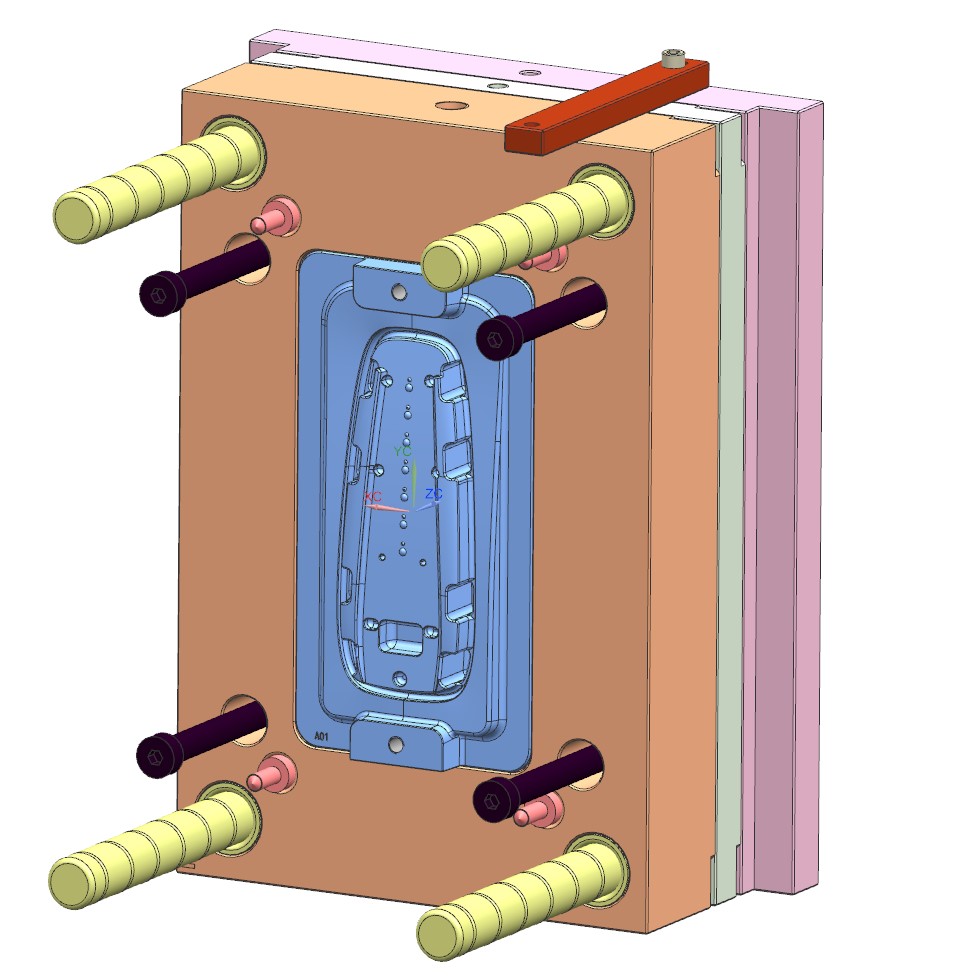

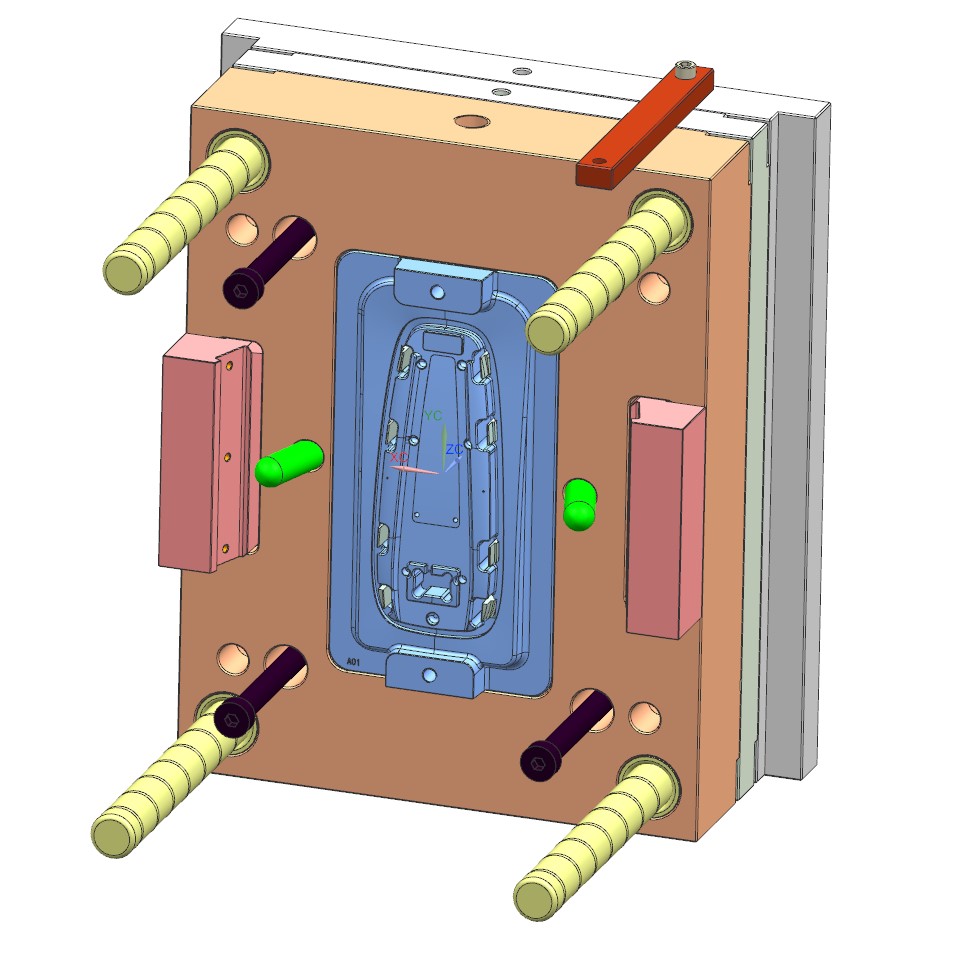

03. MOLD STRUCTURE

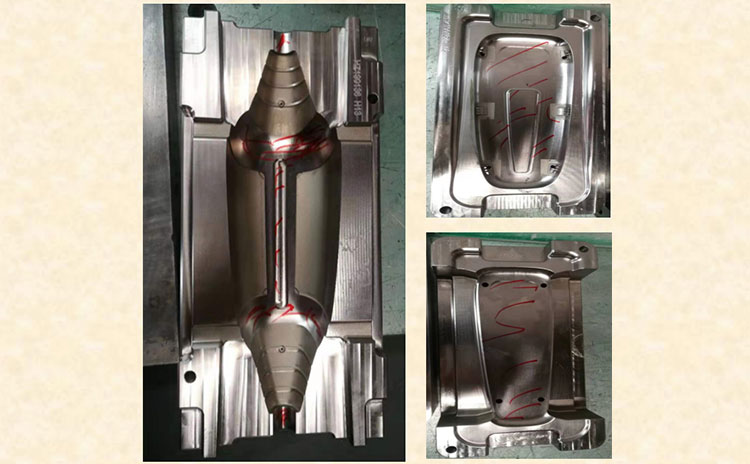

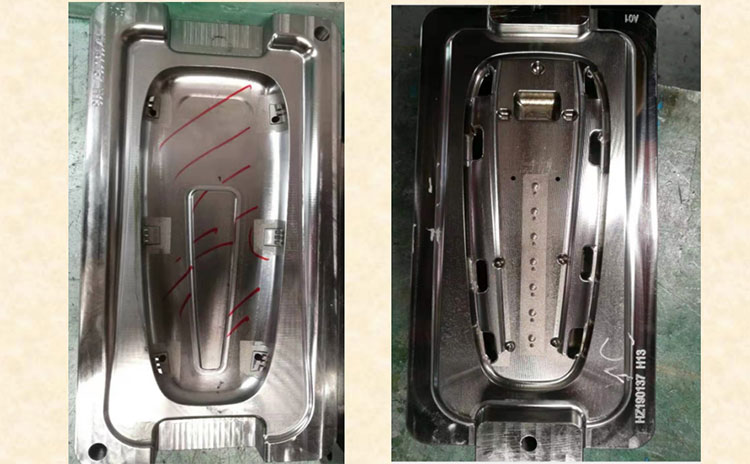

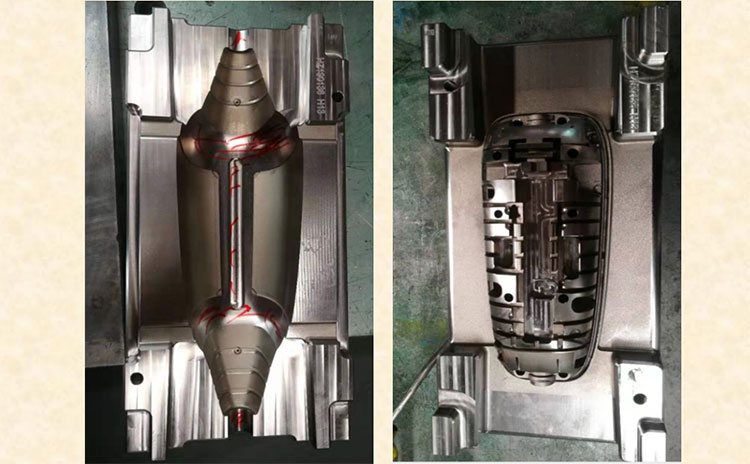

Fixing and moving mold for hard part and lighting part, cavity and core mould for soft top cover and bottom part.
